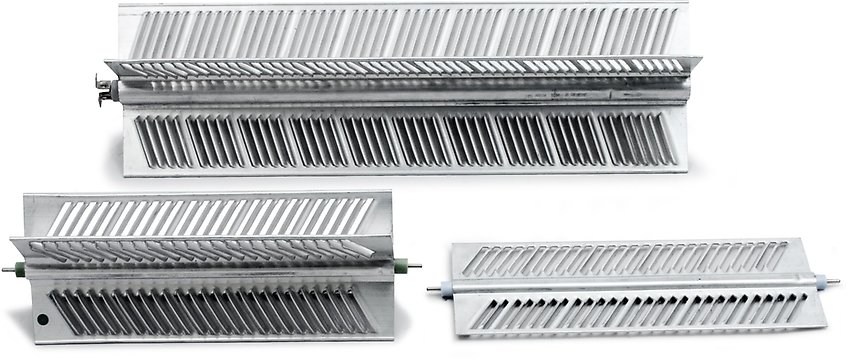

Aluminium elements for convection
Model | Diam | Max. W/lenght |
|---|---|---|
I-80 | Ø 8,5 | 12 W/cm |
I-100 | Ø 8,5 | 15 W/cm |
X-51x71 | Ø 8,5 | 20 W/cm |
X-65x84 | Ø 8,5 | 25 W/cm |
X-67x89 | Ø 14 | 40 W/cm |
Technical data
Material | Aluminium |
Connection | Cables or tab terminals acc. to customer desire. Different types of gilles performance |
Design | One or two end connection |
Voltage | 230V, 400V |
Optional | Fixing devices |
Others | Maximum working temperature on element surface 350°C When assemble, allow an expansion of ca. 1% of the element length |
Benefits
- Low tool cost by new production
- Low density = weight saving
- High degree of corrosion-resistance
- Effective conduction of heat
- Long duration product
Fields of application
- Radiators
- Radiators for trains
