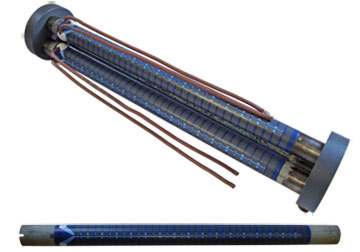

Thick film elements
Thick film elements from Backer give a quick heating and have good heat transmission ability. The elements are easy to adapt to different extensions and have small built-in measures.
Technical data
Material | Thick film on tube of stainless steel AISI 304 |
Dimension | Max diameter - 20 mm |
Assembly | Fixing in the pipe system |
Power density | Från 0 to 80 W/cm² |
Voltage | 110-400 V |
Safety | The elements meet requirements acc. to EN 60335-1 |
Benefits
- Large heating surface
- Compact design
- Fast heating
Examples of applications
- Various through-flow heaters for industrial applications
- Water/beverage dispensers
- Swimming pools
